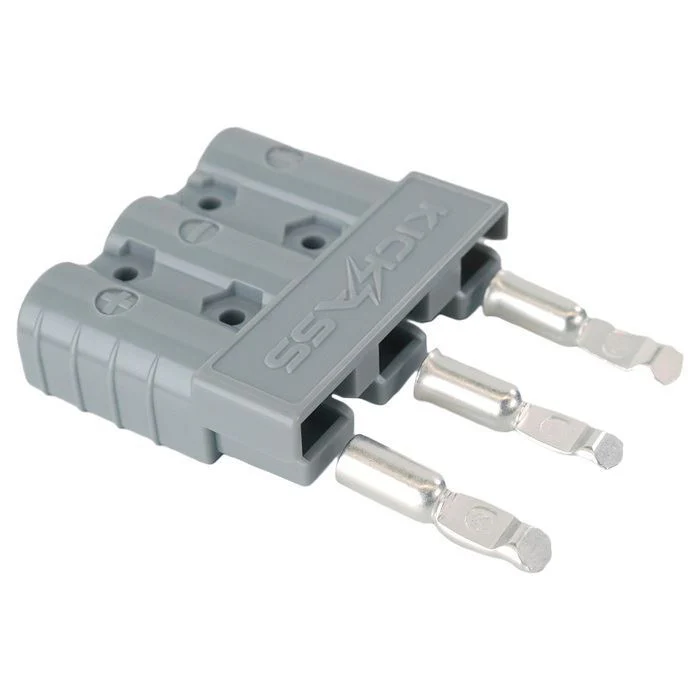

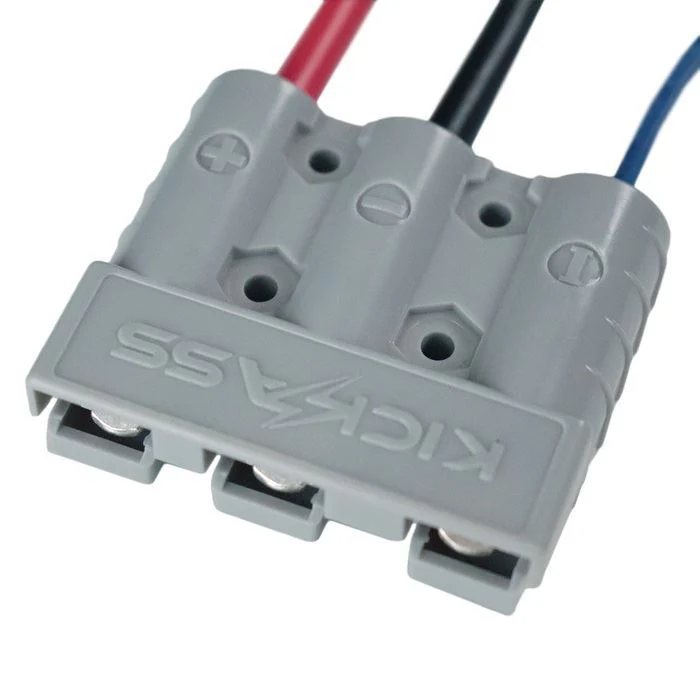

KickAss 3 Pin 50A Grey Anderson Style Connector

The new KickAss Three-Pin Anderson Style Connector simplifies connecting your DC-DC charger by allowing you to run your positive alternator, negative ground, and ignition wires in a single connector. It’s fully insulated, rated to 50 amps, and made from durable polycarbonate. The single-piece housing offers a cost-effective, safe, and long-lasting connection.

Includes:
- 4 Anderson terminals
- 3 terminals for 6 AWG wire
- 1 terminal for 10/12 AWG wire

Please Note:
Grey Anderson plugs are only interconnectable with Black and Grey Anderson plugs.

---

Installation Instructions

PLEASE ENSURE YOU UNDERSTAND THE INSTRUCTIONS PRIOR TO FITTING.

1. Carefully strip back the cable sheathing using a stripping tool or Stanley knife (for twin-core cable).
2. Strip 1 cm of insulation from each single-core cable (positive and negative) using a stripping tool.
3. Attach the Anderson connector terminal lugs to the stripped cable ends and crimp them securely using a crimping tool.
4. Confirm the terminal lugs are properly crimped by ensuring they cannot be pulled off.
5. With the terminal lug lip facing up, insert the positive and negative cables into their designated slots on the Anderson plug (+ and -).
6. Push cables through until the terminal lug lip latches over the internal spring clip and clicks into place.
7. Verify each cable is secured by pulling gently—each should stay locked in place.

Note: To remove the cables from the Anderson plug once installed, use a small flathead screwdriver to press down the spring clip while pulling the cable out from the back of the plug.
